Schedule for I&C Teams

<< 鈭 2025 >>

M T W T F S S
1234567
891011121314
15161718192021
22232425262728
293031
 All band for HGC
HGC
Local
Cell ID
Subrack
No.
RRU
Chain No.
 Sector
DL
EARFCN
UP
EARFCN
Center
Frequency
Downlink
(MHz)
Center
Frequency
uplink
(MHz)
Downlink
Bandwidth
 Band
0 60 Sector 1
1751
1750
19751
19750
1860.1
1860
1765.1
1765
10M
10M
 L1800
1 61 Sector 2
2 62 Sector 3
200 Sector 1 1925 19925 1877.5 1782.5 5M L1800 C2
201 Sector 2
202 Sector 3
20 70 Sector 1 39350 39350 2370 2370 20M L2300A
21 71 Sector 2
22 72 Sector 3
40 Sector 1 39494 39494 2384.4 2384.4 10M L2300B
41 Sector 2
42 Sector 3
160 130 130 Sector 1 9260 27260 763 708 10M L700
161 131 131 Sector 2
162 132 132 Sector 3
60
80 Sector 1
3575
3649
3550
21575
21649
21550
937.5
944.9
935
892.5
899.9
890
5M
5M
10M
 L900
61
81 Sector 2
62
82 Sector 3
80 90 90 Sector 1
499
500
524
18499
18500
18524
2159.9
2160
2162.4
1969.9
1970
1972.4
10M
10M
10M
 L2100
81 91 91 Sector 2
82 92 92 Sector 3
341 110 110 Sector 1 638666 638666 3579.99 40M N78 (NR3500)
342 111 111 Sector 2
343 112 112 Sector 3
321 110 110 Sector 1
621000
620952
3315
3314.280
30M
30M
 N77 (NR3300)
322 111 111 Sector 2
323 112 112 Sector 3
381 90 Sector 1
431980
432030
---
394000
2159.9
2160.15
10M
15M
 N1 (NR2100)
382 91 Sector 2
383 92 Sector 3
461 160 130 Sector 1 152600 141600 763 10M N28 (NR700)
462 161 131 Sector 2
463 162 132 Sector 3
GB 2850
3125		 20850
21125		 2630
2657.5		 2510
2537.5		 20M
15M		 GB - 2600
潸”: webadmin 2023-05-12 @ 15:13 (12 甈⊿梯)
(潸”嚗 | 賂 0)
 HKT POI Cut-In :
HGC
U2100 33
L900 15
L1800 15
L1800C2 15
L2100 15
L2600 15
N2100 12
N77 12
N78 12
潸”: webadmin 2023-05-12 @ 11:42 (5 甈⊿梯)
(潸”嚗 | 賂 0)
 閮 RRU Output Power
HGC
U2100 33.2 dBm
L700 19.7 dBm
L900 21.2 dBm
L1800 18.2 dBm
L2300 15.2 dBm
L2600 18.2 dBm
N2100 15.x / 43 dBm
N28 47.7 dBm
N78 44.7 dBm
潸”: webadmin 2023-05-12 @ 11:35 (7 甈⊿梯)
(潸”嚗 | 賂 0)

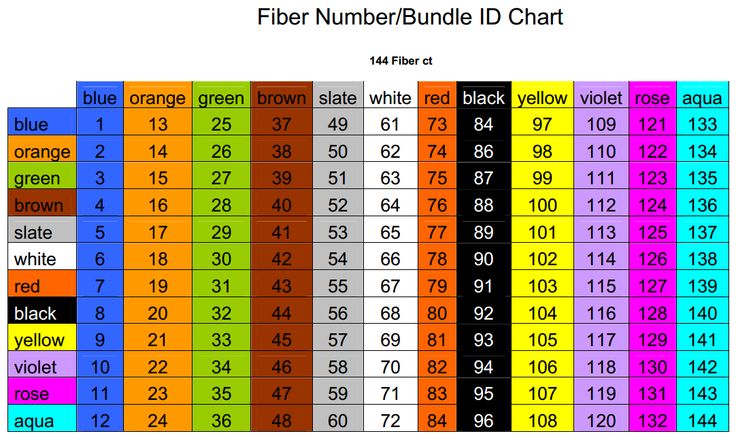

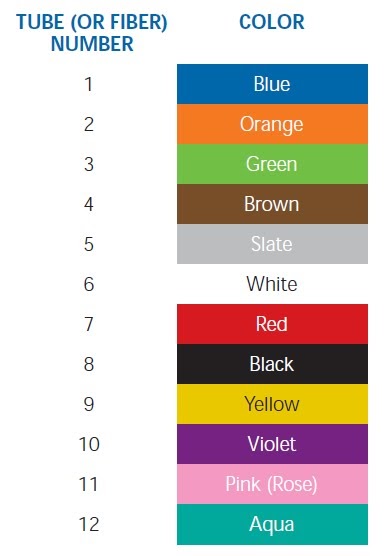

 Number of Fiber for 12 or 144 core
HGC
潸”: webadmin 2021-09-10 @ 12:02 (14 甈⊿梯)
(潸”嚗 | 賂 0)

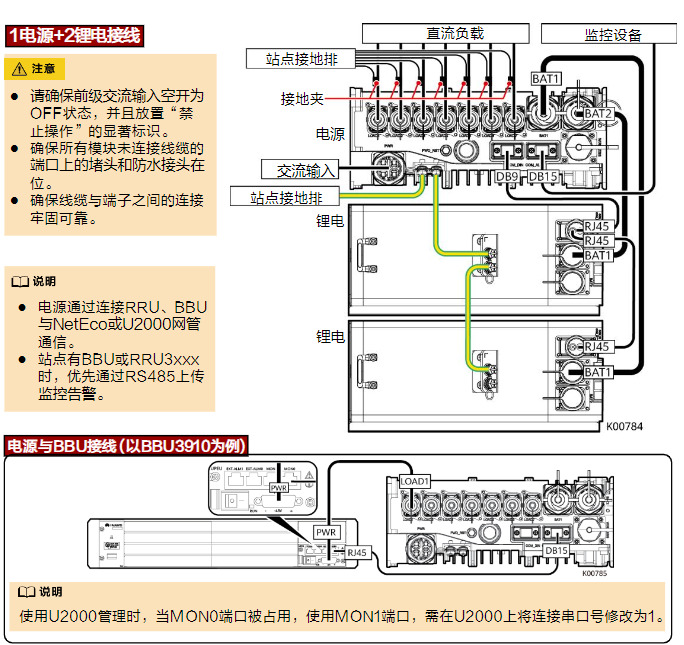

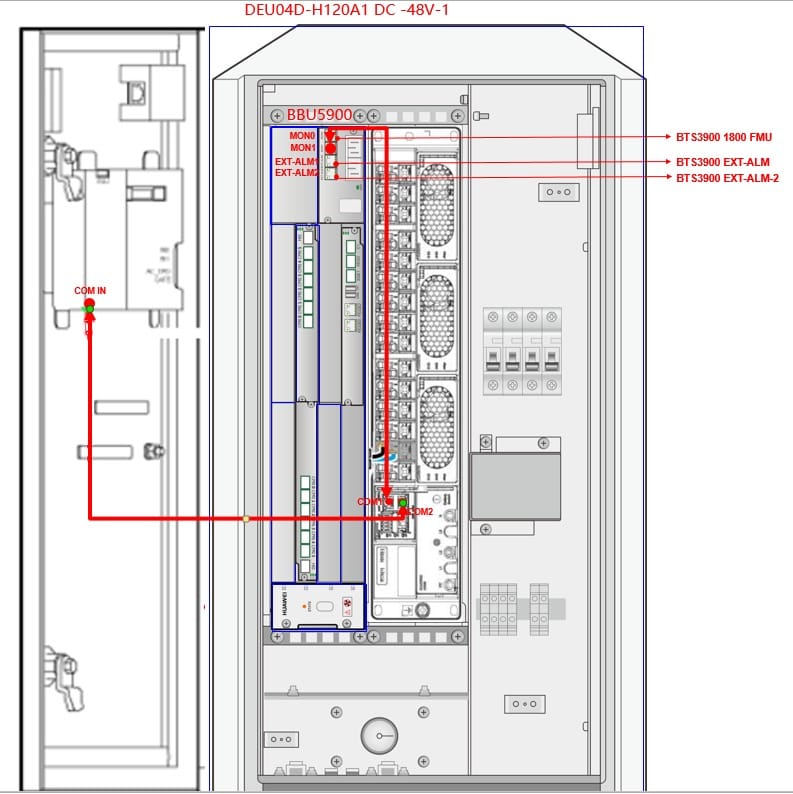

 DPU120D 交孵恕憭餅
HGC

潸”: webadmin 2021-08-03 @ 10:45 (17 甈⊿梯)
(閰喟敦批捆... | 244 雿蝯 | 潸”嚗 | 賂 0)

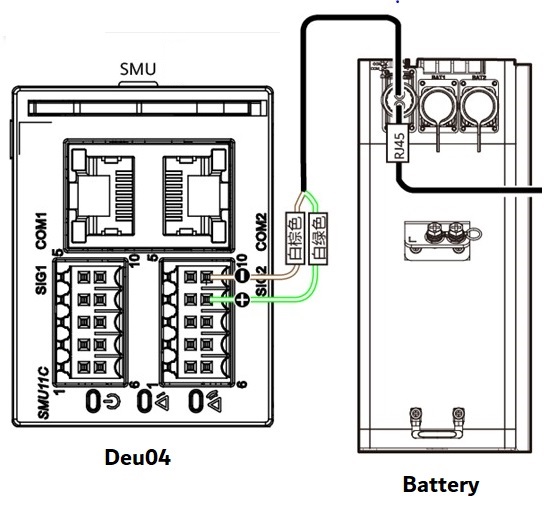

 摰文餅仿 Deu04/OMB
HGC

潸”: webadmin 2021-08-03 @ 10:04 (10 甈⊿梯)
(閰喟敦批捆... | 250 雿蝯 | 潸”嚗 | 賂 0)

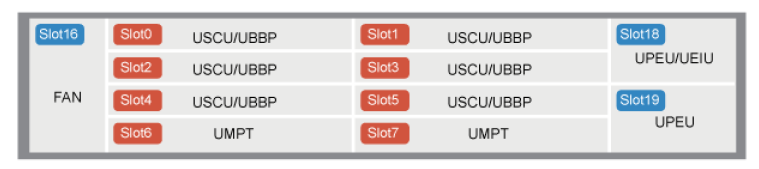

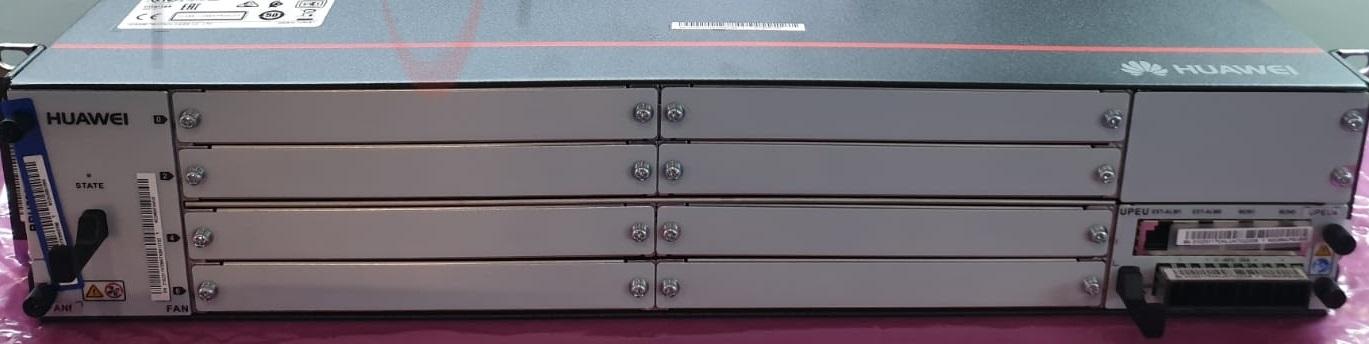

 Slots of the BBU5900
HUAWEI
Slots of the BBU5900:


Samples for HGC slot config :
Slot0 : for N78
Slot1 : for N78 UBBPg2a (Main)
Slot2 : Space or For L1800
Slot3 : For N1/L1800 (UBBPg2)
Slot4 : For L900
Slot5 : For L2300
Slot6 : For Control Boards
Slot7 : Main Control Boards
潸”: webadmin 2021-07-22 @ 15:25 (237 甈⊿梯)
(潸”嚗 | 賂 0)

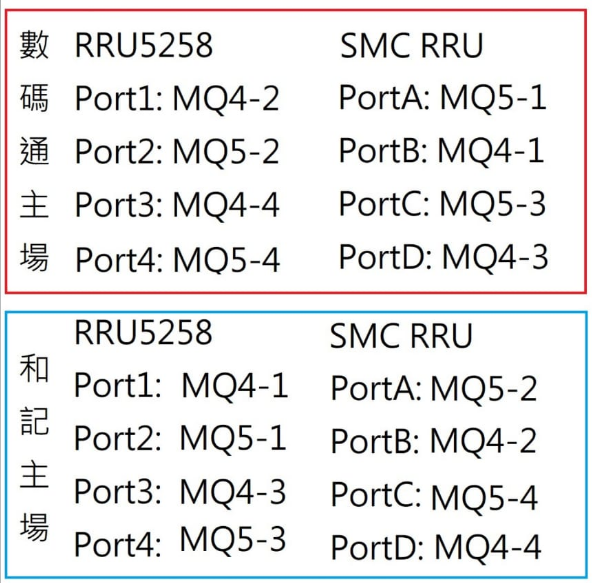

 8T8R to 4T4R 仿
HGC

閮銝餃 :
RRU Port 1 : MQ4-1 : Ant Port 5
RRU Port 2 : MQ5-1 : Ant Port 1
RRU Port 3 : MQ4-3 : Ant Port 7
RRU Port 4 : MQ5-3 : Ant Port 3

貉銝餃 :
RRU Port 1 : MQ4-2 : Ant Port 6
RRU Port 2 : MQ5-2 : Ant Port 2
RRU Port 3 : MQ4-4 : Ant Port 8
RRU Port 4 : MQ5-4 : Ant Port 4
潸”: webadmin 2021-07-14 @ 15:29 (9 甈⊿梯)
(潸”嚗 | 賂 0)
 WDT apps / PHU Smart / ISDP
HUAWEI WDT V5.22.4 :

PHU Smart 6.4.0 :
潸”: webadmin 2021-07-03 @ 12:04 (42 甈⊿梯)
(閰喟敦批捆... | 290 雿蝯 | 潸”嚗 | 賂 0)
 HW Defect List
HUAWEI HW Defect List
Update : 16/6/2021
潸”: webadmin 2021-06-07 @ 11:30 (39 甈⊿梯)
(閰喟敦批捆... | 907 雿蝯 | 潸”嚗 | 賂 0)
 Local Cell ID :
HGC
Local Cell ID :

L700 (9260) Band 28
Local Cell ID : 160, 161, 162, 163, 164, 165
RRU ChainNo / Subrack No : 130, 131, 132, 133, 134, 135

L900 (3649/3575) Band 8
Local Cell ID : 60, 61, 62, 63, 64, 65
RRU ChainNo / Subrack No : 80, 81, 82

L1800 (1751) Band 3
Local Cell ID : 0, 1, 2, 3, 4, 5
RRU ChainNo / Subrack No : 60, 61, 62

L2100 (499/500) Band 1
Local Cell ID : 80, 81, 82, 83, 84, 85
NR2100 Local Cell ID : 381, 382, 383
RRU ChainNo / Subrack No : 90, 91, 92

L2300A/B (39350/39494) Band 40
A Local Cell ID : 20, 21, 22, 23, 24, 25
B Local Cell ID : 40, 41, 42, 43, 44, 45
RRU ChainNo / Subrack No : 70, 71, 72

NR700 (152600) N28
Local Cell ID : 461, 462, 463, 464, 465
RRU ChainNo / Subrack No :

NR3500 (638666) N78
Local Cell ID : 341, 342, 343
RRU ChainNo / Subrack No : 110, 111, 112
潸”: webadmin 2021-05-24 @ 13:16 (238 甈⊿梯)
(潸”嚗 | 賂 0)
 All band for HGC
HGC
Local
Cell ID		 Subrack
No.		 RRU
Chain No.		 DL EARFCN UP EARFCN Band Downlink
Bandwidth		 Sector
0 60 1751
1750		 19751
19750		 L1800 10M Sector 1
1 61 Sector 2
2 62 Sector 3
200   1925 L1800 C2 5M Sector 1
201 Sector 2
202 Sector 3
20 70 39350 39350 L2300A 20M Sector 1
21 71 Sector 2
22 72 Sector 3
40 39494 39494 L2300B 10M Sector 1
41 Sector 2
42 Sector 3
160 160 130 9260 L700 10M
10M		 Sector 1
161 161 131 Sector 2
162 162 132 Sector 3
60 60 80 3575
3649		 21575
21649		 L900 5M
5M		 Sector 1
61 61 81 Sector 2
62 62 82 Sector 3
80 90 499
500
524		 18499
18500
18524		 L2100 10M Sector 1
81 91 Sector 2
82 92 Sector 3
341 110 110 638666 638666 N78 (NR3500) 40M Sector 1
342 111 111 Sector 2
343 112 112 Sector 3
321 110 110 621000
620952		 N77 (NR3300) 30M Sector 1
322 111 111 Sector 2
323 112 112 Sector 3
381 90 431980
432030		 ---
394000		 N1 (NR2100) 10M
15M		 Sector 1
382 91 Sector 2
383 92 Sector 3
461 160 130 152600
141600 N28 (NR700) 10M
10M		 Sector 1
462 161 131 Sector 2
463 162 132 Sector 3
GB 2850 20850 GB - 2600 20M
潸”: webadmin 2021-05-24 @ 13:07 (226 甈⊿梯)
(潸”嚗 | 賂 0)
 Coaxial Cable Size :
HGC
Coaxial Cable Size :
   LDF2 : 3/8" Coaxial Cable (Less than 5M)
   LDF4 : 1/2" Coaxial Cable (Less than 15M)
   LDF5 : 7/8" Coaxial Cable (Less than 60M)
   LDF6 : 1-1/4" Coaxial Cable (More than 60M)
   LDF7 : 1-5/8" Coaxial Cable (More than 60M)
潸”: webadmin 2021-05-24 @ 13:01 (8 甈⊿梯)
(潸”嚗 | 賂 0)
  2T2R 頧 1T1R
HUAWEI 2T2R 頧 1T1R
潸”: webadmin 2021-05-24 @ 12:57 (16 甈⊿梯)
(閰喟敦批捆... | 507 雿蝯 | 潸”嚗 | 賂 0)
  notebook 閫 admin 憓餃乩犖.
HUAWEI
閫 admin :
Command :ulk usr
Operator Name : admin


憿舐內撟曉鈭箏舐餃:
LST USRMAXONLINE:;

閮剖餃乩犖貊 3 :
SET USRMAXONLINE: SETTYPE=LOCAL_USER_GENERAL, USERMAXNUM=3;
潸”: webadmin 2021-05-24 @ 12:56 (27 甈⊿梯)
(潸”嚗 | 賂 0)
